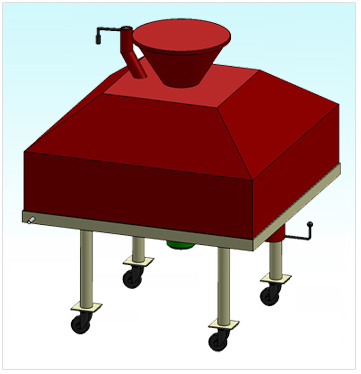

Flat Bottom Jacketed Roasters


Flat Bottom Jacketed Roasters
Flat bottom jacketed Roaster is superior for its easiness in operation and cleaning. Bottom discharge door ensures discharge of the material during operation. Maximum importance is given for hygiene. A top conical lid (optional) is provided with four removable doors. Motor and gear box is fixed at bottom to eliminate spillage to vessel from drives.

Two methods for heating this vessel is either by steam or thermic fluid. The fuel can be selected to match your heating system and availability. Sides and bottom of the vessel is well insulated with mineral wool and covered with stainless steel 304 grade steel to ensure maximum efficiency.

This Unique machine can act as :-
  Spice Roaster   Ayurvedic medicine preparation Vessel   Powder Roaster
  Curry sauce preparation Vessel   Fruit Pulp boiling Vessel   Halwa preparation Vessel and also as Blender

These vessels are available in four standard models as given in the chart. It can also be supplied as per customer’s specification.

Sl
No.
Volume in
Ltr. Capacity
Dimension of Vessel
Dia × Height in mm
Power
HP/RPM
RPM of
Stirrer
1 350 1250 × 300 1/960 30
2 650 1500 × 400 2/960 24
3 1000 1750 × 450 3/960 20
4 1500 2000 × 500 5/960 15
