Batch Roasters

Batch Roasters
Hardworking designed for Roasting.
In chemical, foods, dyestuff, pharmaceutical or any other Applications where a dependable sources of heated air to 3500 C is required. Complete with temp. Controllers that Offers the latest in solid state heating sensing technology And built in floor level tracks that make trolley loading Easy.

Horizontal airflow accommodators virtually any Loading without restricting air passages. Work can be Shelf loaded or placed directly on the optional reinforced work space bottom. Five sizes Side mounted control panel minimizes floor space required. Designed for Roasting, Drying, Pre- Heating or any other application where a dependable source of heated air up to 350o C.

Batch Roasters
STANDARD FEATURES :-
CAEJOPE3.jpg  PID. controller.
CAEJOPE3  Motor control push buttons.
CAEJOPE3  On-off heater switch.
CAEJOPE3  Easy to see pilot lights. 		SAFETY EQIPMENT :-
CAEJOPE3  Adjustable, thermocouple actuated,
   Manual reset Excess temperature
   Controller.
CAEJOPE3  Separate heating elements control
   Contactors.
CAEJOPE3  Interlock Heaters & Blower.
CONSTRUCTION :-

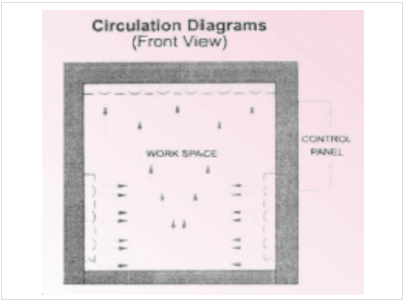

CAEJOPE3  Front to bottom horizontal air flow.
CAEJOPE3  GI or MS or SS/ interior.
CAEJOPE3  MS exterior with painted.
CAEJOPE3  All welded construction.
CAEJOPE3  Explosion venting latches.
CAEJOPE3  2.5kg per cu. Feet density Rock wool insulation.
CAEJOPE3  Silicon rubber/ Asbestos door gasket on up to 300 degree
CAEJOPE3  Adjustable fresh air & exhaust dampers.
CAEJOPE3  High pressure re-circulating blower.
CAEJOPE3  Door hinges, ball catch, Handle.
CAEJOPE3  1 year limited Warranty.

SPECIFICATION :-

No. of Tray
Size (0) W×D×H
Size (I) W×D×H

Heating load Kw
No. of Doors
No. of Fans
No. of Motors
No. of Trolley.
100oC 200oC 300oC
12 54×21×37” 33×18×36” 3 6 9 1 1 1×0.25 -
24 54×37×37” 33×34×33” 6 9 12 1 2 1×0.5 -
48 78×40×74” 40×36×72” 9 15 21 1 1 1×1.00 1
96 131×40×74” 77×36×72” 15 21 27 2 2 1×1.0 2
192 131×75×74” 77×69×72” 36 42 48 2 4 2×2.0 4

Batch Roasters
TRUCK WHEEL DUIDE TRACK :-
CAEJOPE3  Allows loading at factory floor level.
CAEJOPE3  Choice of track width and centres.
CAEJOPE3  Structural steel angle iron construction.
CAEJOPE3  Integrally welded to steel base plate.
CAEJOPE3  Flared entrance for easy loading.
CAEJOPE3  Available with insulated floor.		 INSULATED FLOOR :-
CAEJOPE3  Minimizes heat loss through floor.
CAEJOPE3  Improves temperature uniformity
   at bottom of workspace.
CAEJOPE3  High density insulation.
CAEJOPE3  Structural steel angle iron reinforcement.
CAEJOPE3  Integrally welded construction.
CAEJOPE3  Steel plate cover.
CAEJOPE3  Available with truck wheel guide tracks.
